Lab Pumps
PTFE Coated Vacuum Pump Features
- Chemical resistance & effective
Applied with PTFE-coated diaphragm and pump head with FKM valves, Rocker 900C / 910C pumps are adequate to work in milder chemical gases and be cost-effective at the same time. - Oil-free & care-free
Rocker 900C / 910C pumps are driven by diaphragm that needs no lubricant, making them maintenance-free and oil-mist-free. - Minimized vibration & quiet
Superior weight distribution and assemblies minimize the vibration and noises and maximize stability. - Overheat protection
All Rocker 900C / 910C pumps are equipped with overheat protection device that shuts down when overheated and resumes once cooled down, making the pumps safer and long-lasting.
PTFE Coated Vacuum Pump Videos
PTFE Coated Vacuum Pump International Certificates
- CE certification
- IP 30 protection
- RoHS certification
PTFE Coated Vacuum Pump Applications
- Vacuum evaporation and concentration
- Vacuum drying / oven / defoaming
- Solvent purification
- Gel drying
- Vacuum filtration
Literature references
| Literature | Author | Method applied |
| Structural and Physicochemical Characterization of Extracted Proteins Fractions from Chickpea (Cicer arietinum L.) as a Potential Food Ingredient to Replace Ovalbumin in Foams and Emulsions | Daniela Soto-Madrid et al. | Supernatant filtration to remove flour scraps |
| Solvent polarity mediates phytochemical yield and antioxidant capacity of Isatis tinctoria | Abdul Wakeel et al. | Vacuum drying |
PTFE Coated Vacuum Pump Ordering Information
| Product Part Number | Product |
|
189900-11 189900-22 |
Rocker 900C, PTFE Coated Chemical Resistant Vacuum Pump AC110V, 60Hz Rocker 900C, PTFE Coated Chemical Resistant Vacuum Pump AC220V, 50Hz |

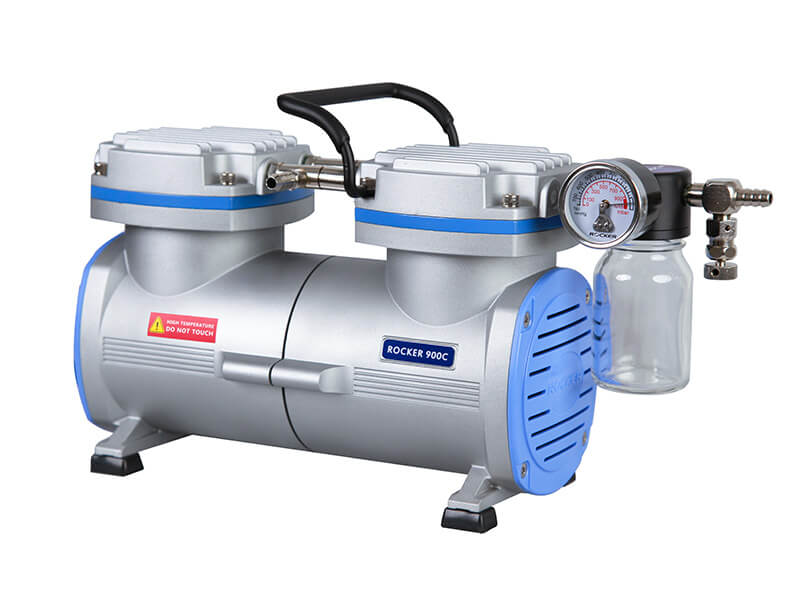

Rocker 900C PTFE Coated Vacuum Pump Specification
| ▸ Rocker 900C: 110V/60Hz ▸ Max. power: 250W ▸ Max. current: 1.2A ▸ Max. vacuum: 99 mbar abs. ▸ Max. flow rate: 60 L/min ▸ Noise level: 60 dB ▸ Hose barb: ID8 ▸ Net weight: 6.8 Kg ▸ Dimension (LxWxH): 37 x 13 x 21 cm ▸ Overheat protection: Yes ▸ Vacuum regulator: Yes ▸ Glass moisture trap: Yes |
▸ Rocker 900C: 220V/50Hz ▸ Max. power: 190W ▸ Max. current: 0.9A ▸ Max. vacuum: 99 mbar abs. ▸ Max. flow rate: 55 L/min ▸ Noise level: 60 dB ▸ Hose barb: ID8 ▸ Net weight: 6.8 Kg ▸ Dimension (LxWxH): 37 x 13 x 21 cm ▸ Overheat protection: Yes ▸ Vacuum regulator: Yes ▸ Glass moisture trap: Yes |
