Lab Filtration

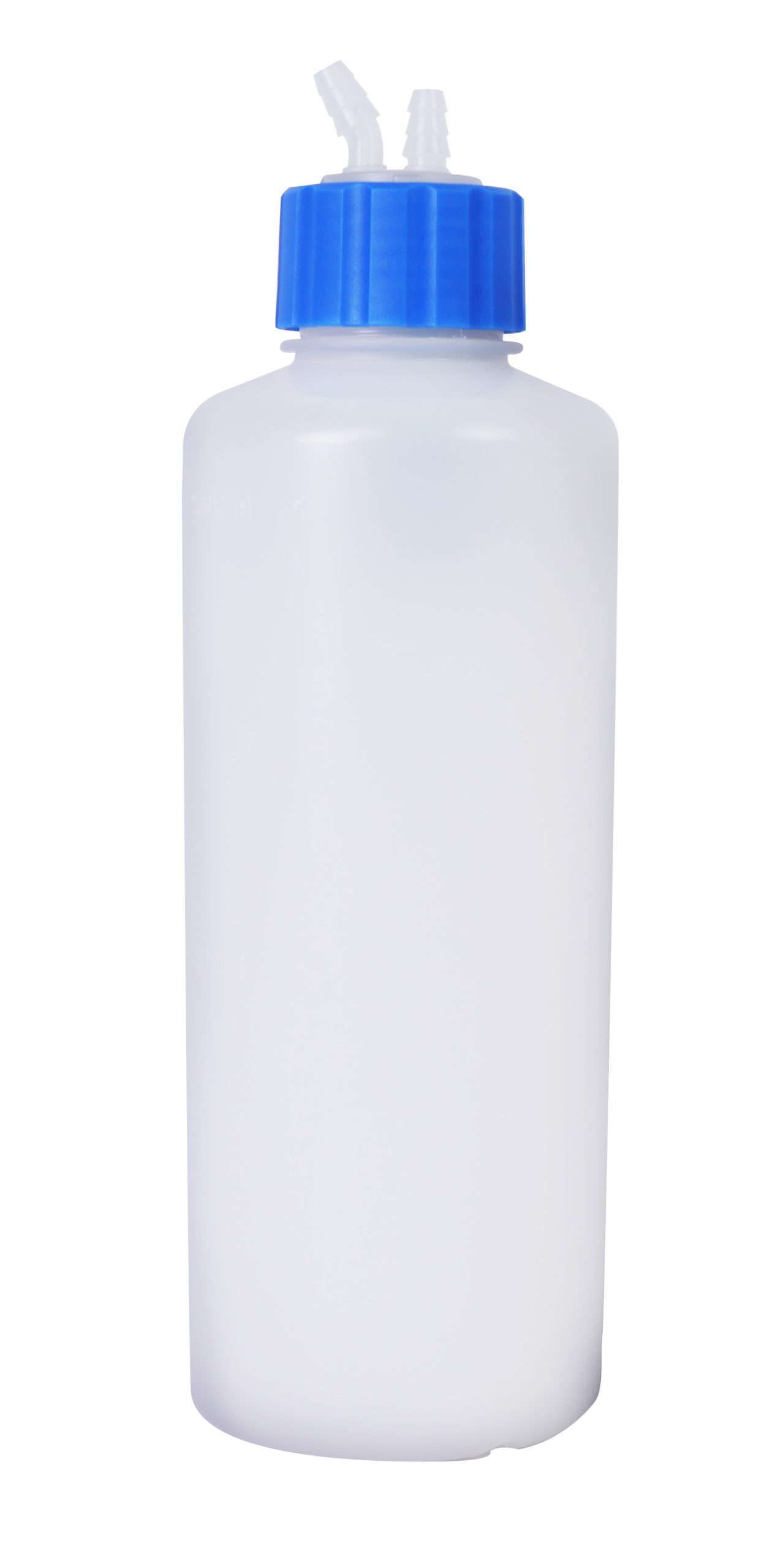

PP Vacuum Bottle
1000 mL / 2000 mL
▸ Overflow protection
- Instruction
- Specification
- Tech Support
PP Vacuum Bottle Feature
- Sturdy and Shatterproof
– Thick-walled construction withstands full vacuum for 24 hours.*
– Made from rugged polypropylene (PP), an excellent alternative to glass. - High Quality
– EPDM and Silicone O-ring guaranteed leakproof under vacuum conditions.
– Volume graduations are marked at side of bottle for easy identification. - Chemical Resistant & Autoclavable
– Good resistance to a wide range of chemicals.
– Autoclavable at 1bar and 121˚C for 20 minutes.* Test at room temperature @ 25°C.
PP Vacuum Bottle Application
- Vacuum applications
- Waste bottle, safety bottle
- Aseptic liquid transfer bottle
- HPLC solvent container
PP Vacuum Bottle Order Information

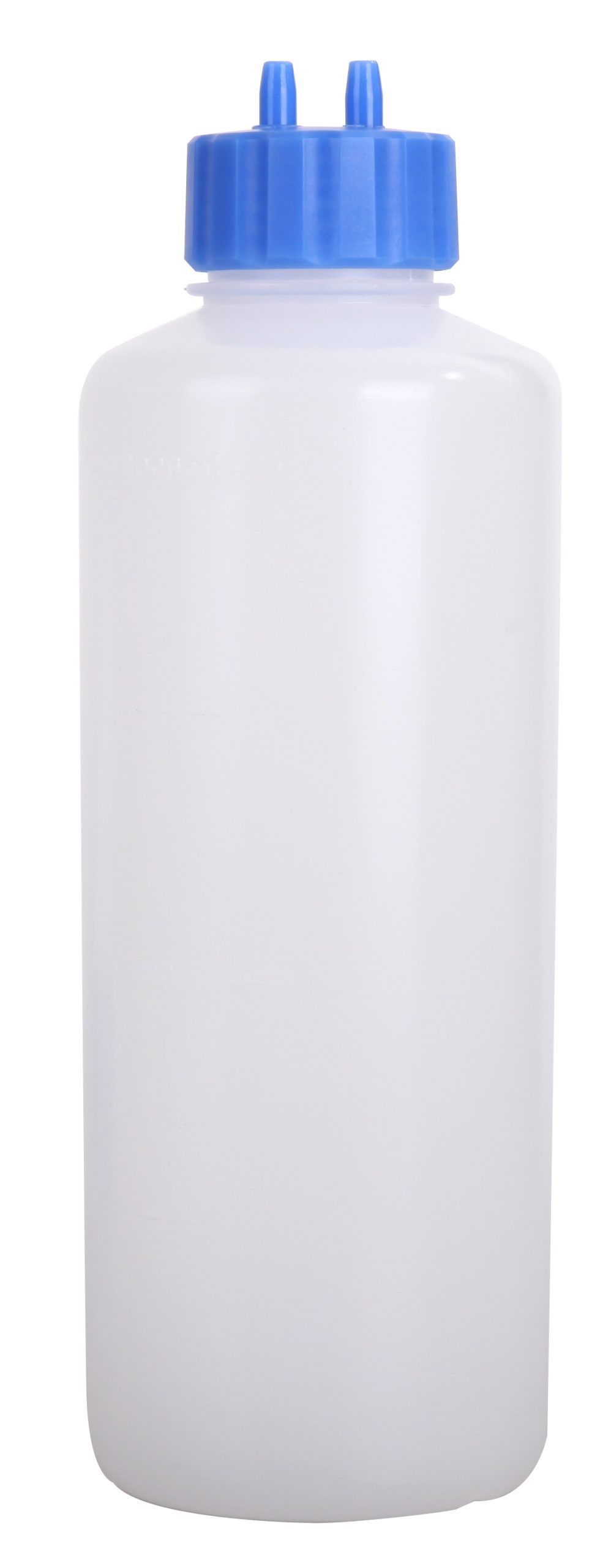

PP Vacuum Bottle, 1000 mL |
||
Cat. No. |
197100-10SC |
197100-10SCN |
Features |
▸ 1L graduation ▸ Hose barb connector ▸ Unscrewing without disconnecting the tubing ▸ Overflow protection |
▸ 1L graduation ▸ Hose barb connector ▸ Unscrewing without disconnecting the tubing |
Specification |
▸ Connector: Hose barb ▸ Graduated increment: 250 mL ▸ Overflow protection: Yes ▸ Hose barb: ID4 ~ ID8 ▸ Drain device: No ▸ Autoclavable: Yes
|
▸ Connector: Quick-coupling connector ▸ Graduated increment: 250 mL ▸ Overflow protection: Yes ▸ Hose barb: ID4 ~ ID8 ▸ Drain device: No ▸ Autoclavable: Yes
|

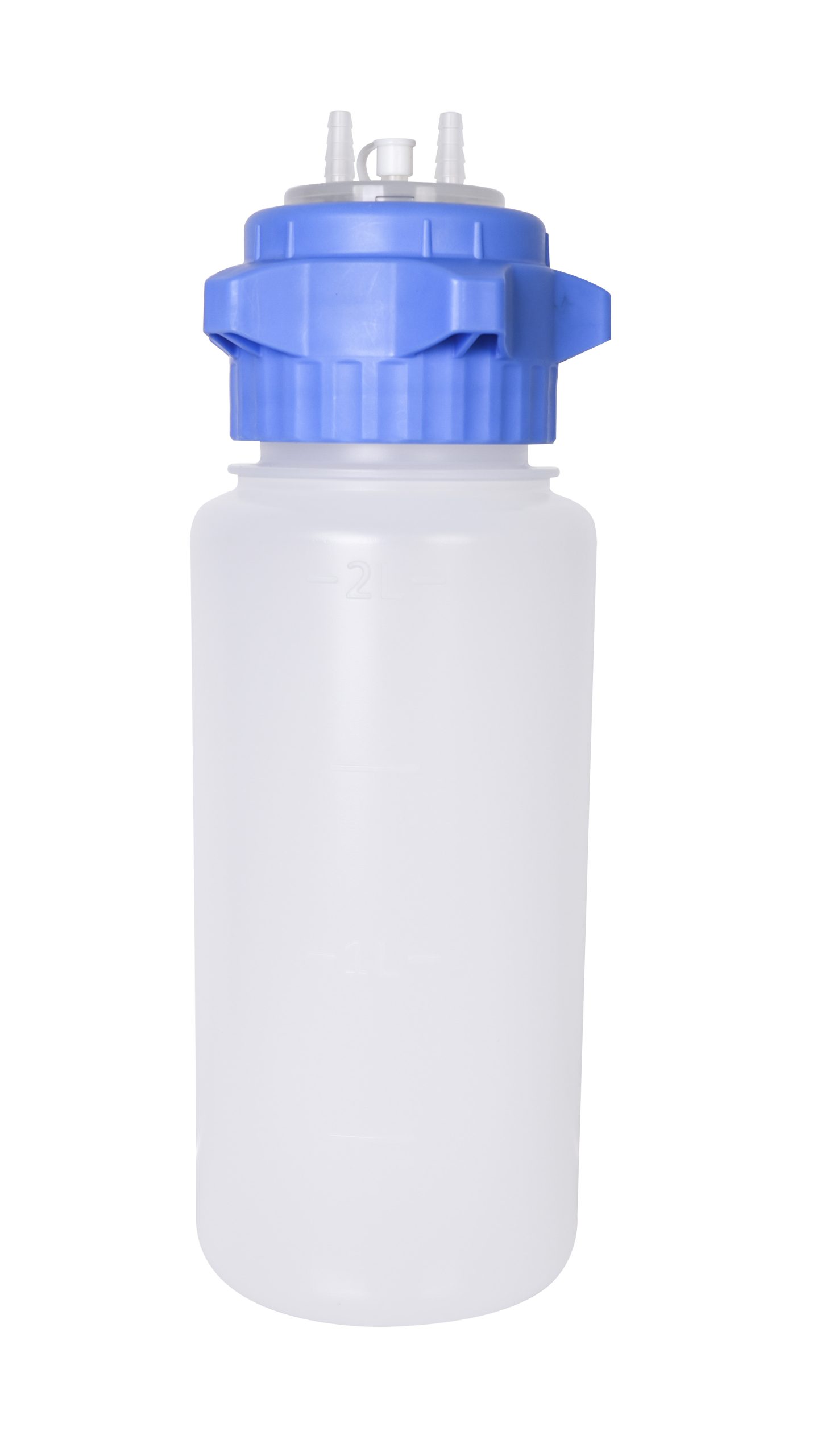

PP Vacuum Bottle, 2000 mL |
||
Cat. No. |
197202-47 |
197202-53 |
Features |
▸ 2L graduation ▸ Hose barb connector ▸ Unscrewing without disconnecting the tubing ▸ Overflow protection |
▸ 2L graduation ▸ Quick-coupling connector ▸ Unscrewing without disconnecting the tubing ▸ Overflow protection |
Specification |
▸ Connector: Hose barb ▸ Graduated increment: 500 mL ▸ Overflow protection: Yes ▸ Hose barb: ID4 ~ ID8 ▸ Drain device: No ▸ Autoclavable: Yes
|
▸ Connector: Quick-coupling connector ▸ Graduated increment: 500 mL ▸ Overflow protection: Yes ▸ Hose barb: ID6 ▸ Drain device: No ▸ Autoclavable: Yes
|
Catalog Number |
Description |
Overflow protection |
Cap size |
Connector |
197100-10SC |
PP Vacuum Bottle, 1000 mL |
Yes |
GL45 |
Hose barb ID4 ~ ID8 |
197100-10SCN |
PP Vacuum Bottle without overflow protection, 1000 mL |
– |
GL45 |
Hose barb ID4 ~ ID8 |
197202-47 |
PP Vacuum Bottle, 2000 mL |
Yes |
B83 |
Hose barb ID4 ~ ID8 |
197202-53 |

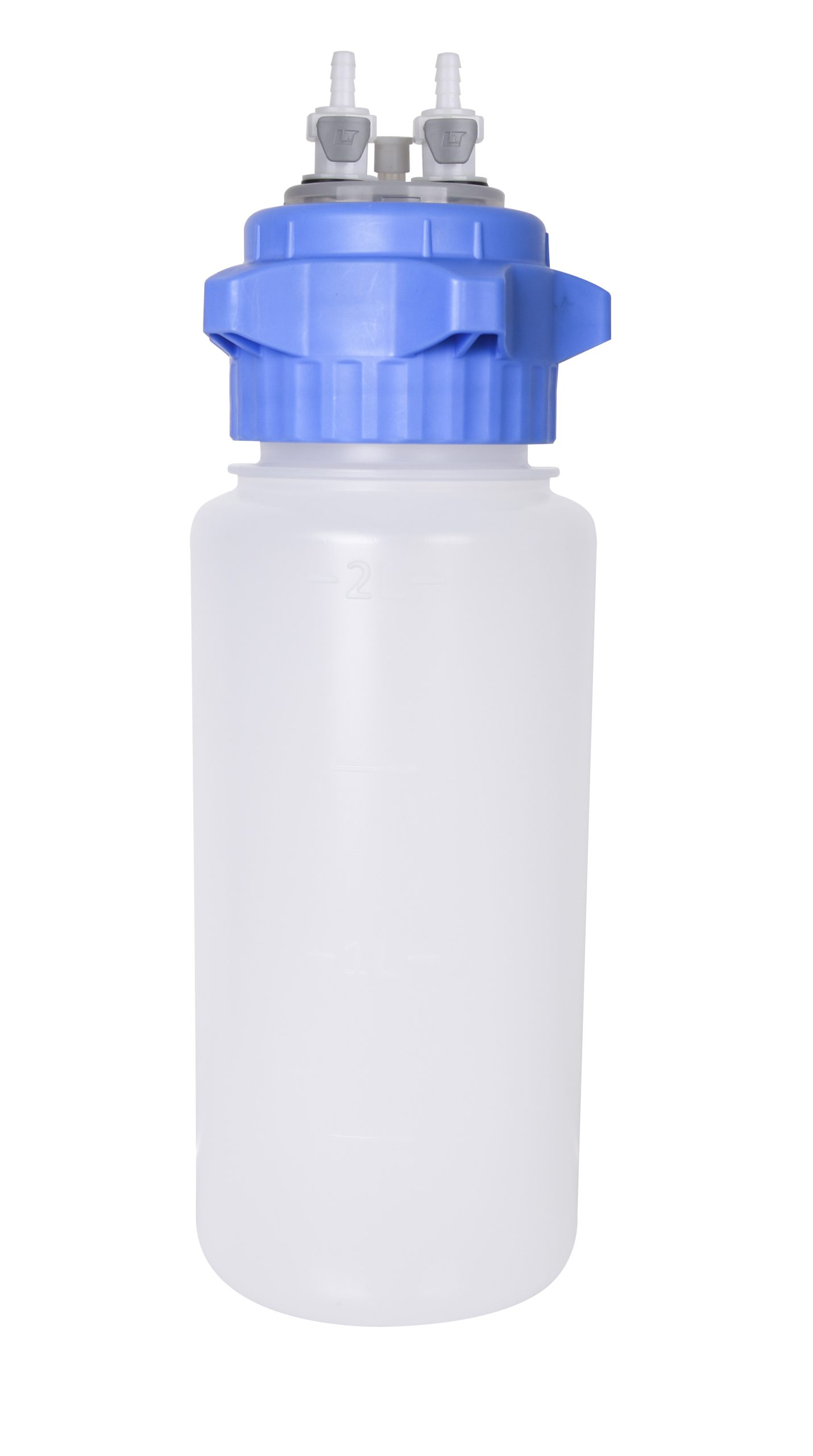

PP Vacuum Bottle with Quick-Coupling Connector, 2000 mL |
Yes |
B83 |
Quick Coupling Connector, ID6 |
197200-47 |
PP Vacuum Bottle, 4000 mL |
Yes |
B83 |
Hose barb ID4 ~ ID8 |
197200-48 |
PP Vacuum Bottle with Drain, 4000 mL |
Yes |
B83 |
Hose barb ID4 ~ ID8 |
197200-53 |
PP Vacuum Bottle with Quick-Coupling Connector, 4000 mL |
Yes |
B83 |
Quick Coupling Connector, ID6 |
