Lab Filtration
Filtration Apparatus Features
- MF 30 strong magnetic seal allows one-handed operation
- Excellent smash, high temperature resistance and autoclavable.
- Funnel graduated in 50 ml, receiver in 100 ml increments for easy measurement.
- Built-in overflow protection to keep the filtrate from overflowing when waste bottle is full.
Filtration Apparatus Video
MF 30 Filtration Apparatus includes:
▸ 300 ml PES Magnetic filter holder
▸ 1200 ml PC waste bottle with cover
▸ Overflow protection
▸ Silicon stopper (No.16)
▸ Cap with suction fitting
Filtration Apparatus Applications:
- General filtration
- Waste suction
Filtration Apparatus Ordering Information

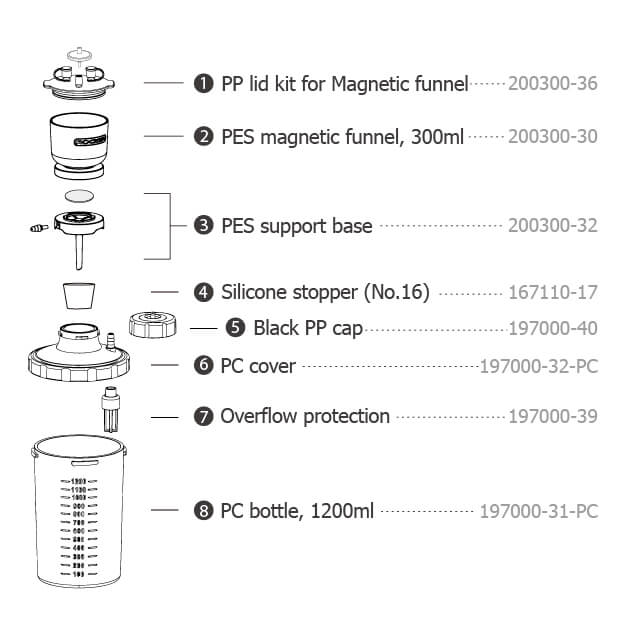

| Part Number | Description |
| 200320-30 | MF 30, 47 mm Filtration Apparatus |
| 200300-01 200300-36 200300-30 200300-32 167110-17 |
MF 3, Magnetic filter holder (300ml) includes: PP lid kit for magnetic funnel PES magnetic funnel, 300 ml PES magnetic support base Silicone stopper (No. 16) |
|
197000-11-PC |
PC waste bottle with cover, 1200 ml Black PP cap PC cover Overflow protection PC bottle, 1200 ml |
MF 30 Filtration Apparatus Specification
| ▸ Specification: ▸ Funnel capacity: 300 ml ▸ Flask capacity: 1200 ml ▸ Filter diameter: 47 mm ▸ Hose barb: ID8 ▸ Syringe filter: 25 mm, 0.2 μm |
▸ Material: ▸ Funnel – PES ▸ Support base – PES ▸ Membrane support – PES ▸ Syringe filter – PTFE ▸ Receiver flask – PC |
