Lab Filtration
Filtration Apparatus Features
- Fast and stable installation with the filter holder’s clamp-free spin-lock design.
- SS316 funnel is shatterproof, durable and can be fast sterilized by flame.
- Drains the filtrate away directly without removing the tubes.
Filtration Apparatus Video
Filtration Apparatus Applications
- Vacuum filtration
- Medium purification
- Microbiological test

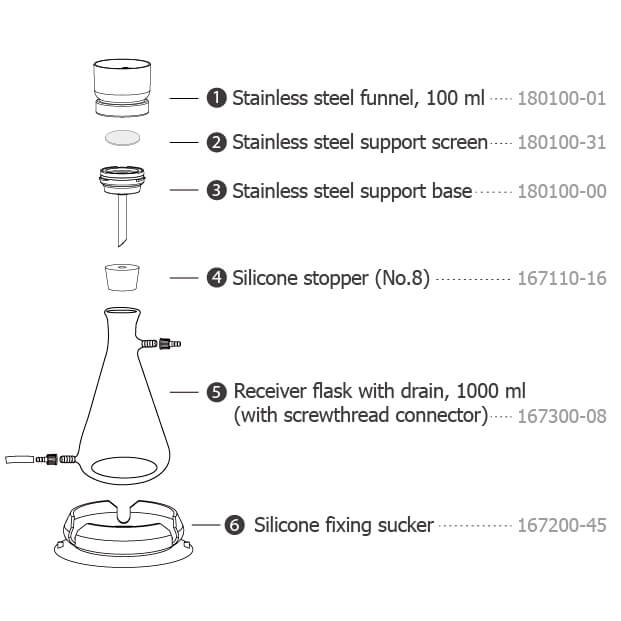

Filtration Apparatus Ordering Information
| Part Number | Description |
| 167200-02 | SF 11, 47 mm Stainless Steel Filtration Set (include parts below:) |
| 180100-10 | SF 1, 100ml Stainless steel filter holder |
| 167300-08 | Receiver flask with drain, 1000 mL (with screwthread connector) |
| 167200-45 | Silicone fixing sucker |
SF 11 Filtration Apparatus Specification
| Specification ▸ Funnel capacity: 100 mL ▸ Flask capacity: 1000 mL ▸ Filter diameter: 47 mm ▸ Hose barb: ID8 ▸ Drain device: Yes |
Material ▸ Funnel – SS316 ▸ Support base – SS316 ▸ Membrane support – SS316 ▸ Stopper – Silicone rubber (No.8) ▸ Receiver flask – Borosilicate glass ▸ Drain hose – Rubber (non-autoclavable) |
