Lab Filtration
Multi-Branch Manifold System Features:
- For large number of samples

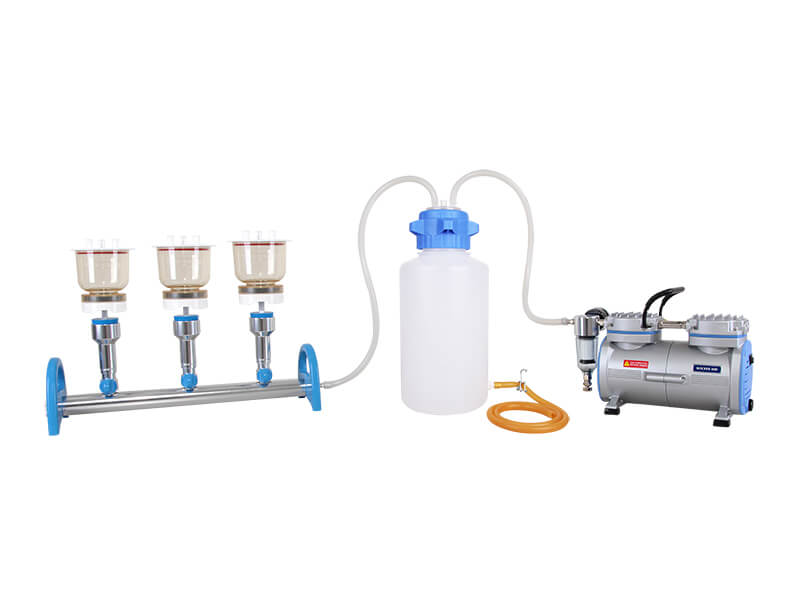

MultiVac 310 – MS – T is an economical kit for filtration with large number samples. - Light and handy
This aluminum-made manifold is light, cost-effective and autoclavable. Each component can be easily removed for cleaning and autoclaving. - Magnetic filter holders are included
Magnetic filter holder allows for one-handed operation and can prevent the membrane from being twisted or torn. - 4000 mL PP vacuum bottle with drain
The large capacity of 4000 mL vacuum bottle with drain offers convenience of collecting and draining liquid waste.
Multi-Branch Manifold System Videos:
Multi-Branch Manifold System Certificates
- CE certification
- UKCA certification
- CSA certification (Rocker 400)
- IP 30 protection (Rocker 400)
- RoHS certification (Rocker 400)
Multi-Branch Manifold System Applications
- Filtration for suspended solid test
- Filtration for microbiological test
- General laboratory filtration
Multi-Branch Manifold System Ordering Information
| Part Number | Description |
| 180311-11(22)-T | MultiVac 310-MS-T Vacuum Filtration System includes : ▸ Rocker 400, Oil Free Vacuum Pump ▸ MultiVac 310-MS, 3-Places Aluminum Manifold ▸ MF 3, 300 ml Magnetic Filter Holder (3 pcs) ▸ 4000 ml PP Vacuum Bottle with drain ▸ Silicone Tube (1m x 2pcs) |
| 200300-01 | MF 3, 300 ml Magnetic Filter Holder with lid kit (optional) |
| 200500-01 | MF 5, 500 ml Magnetic Filter Holder with lid kit (optional) |
Multi-Branch Filtration System Specification
| Rocker 400 Specification (110V, 60Hz) ▸ Max. power: 100 W ▸ Max. current: 1.0 A ▸ Max. vacuum: 99 mbar abs. ▸ Max. flow rate: 37 L/min ▸ Vacuum regulator: Yes ▸ Overflow protection: Yes ▸ Filter cartridge: Yes ▸ Thermal protection: Yes ▸ Motor rotation speed: 1750 RPM ▸ Horse power: 1/6 HP ▸ Noise level: 52 dB ▸ Hose barb: ID8 |
Rocker 400 Specification (220V, 50Hz) ▸ Max. power: 80W ▸ Max. current: 0.4A ▸ Max. vacuum: 105 mbar abs. ▸ Max. flow rate: 34 L/min ▸ Vacuum regulator: Yes ▸ Overflow protection: Yes ▸ Filter cartridge: Yes ▸ Thermal protection: Yes ▸ Motor rotation speed: 1450 RPM ▸ Horse power: 1/6 HP ▸ Noise level: 52 dB ▸ Hose barb: ID8 |
規格
| MultiVac 310-MS Specification ▸ Number of branch: 3 ▸ Filter diameter: 47 mm ▸ Material contact with filtrate: Aluminum |
