Lab Filtration
Multi-Branch Manifold System Features
- For microbiological filtration
MultiVac 301-MB-A is a perfect kit for microbiological tests with large number samples. All wetted parts of manifold are made of SS316 stainless steel, which can be fast sterilized by flame. - Save time & space
Alligator 200 liquid pump bypasses filtrate directly to waste without connecting to additional waste bottles. Saving time for doing tedious cleaning works and more than 40% of bench space. - Quick-assembly and disassembly
Each component of manifold can be easily removed for cleaning and autoclaving. - Innovative vent valve design
Adjustable vent valve eliminates water hammer phenomenon and helps drain residual liquid in pipe.
Multi-Branch Manifold System Videos
Multi-Branch Manifold System Certificates
- CE certification
- UKCA certification
- IP 64 protection (Alligator 200)
- RoHS certification (Alligator 200)
Multi-Branch Manifold System Applications
-
- Suspended solid test for water monitoring
- Microbiological test by Membrane Filter Technique
- Vacuum filtration without collecting filtrate
Multi-Branch Manifold System Ordering Information
| Part Number | Description |

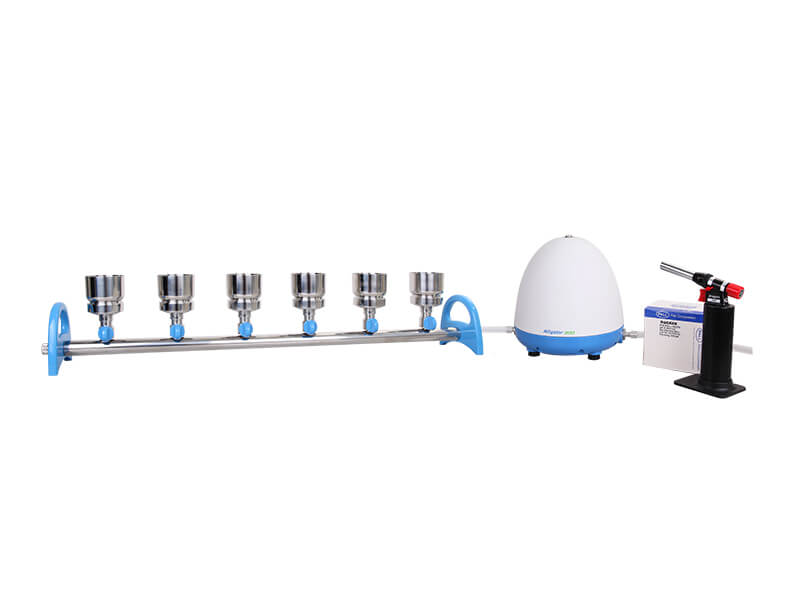

| 180601-01(02)-A | MultiVac 601-MB-A, Vacuum Filtration System, complete set includes: ▸ Alligator 200, Diaphragm Liquid Pump ▸ MultiVac 600-MB, 6 Places Stainless Steel Manifold ▸ SF, 100 ml Stainless Steel Funnel (6 pcs) ▸ Dragon 100, Torch Burner ▸ MCE Membrane, 47 mm, 0.45 μm, 100/PK ▸ Silicone Tube (2 pcs) |
| 180100-01 | SF, 100 ml Stainless Steel Funnel (optional) |
| 180100-03 | SF, 300 ml Stainless Steel Funnel (optional) |
| 180100-05 | SF, 500 ml Stainless Steel Funnel (optional) |
Multi-branch Filtration System Specification
| Alligator 200 Specification ▸ Power: DC24V, 1.8A ▸ Max. vacuum: 313 mbar abs. ▸ Max. liquid flow rate: 4.5 L/min ▸ Motor: 60W Brushless DC Motor ▸ Hose barb: ID8 (5/16 inch) ▸ Material contact with filtrate: SS316, FKM, Silicone, PP, PPS |
MultiVac 601-MB Manifold Specification ▸ Number of branch: 6 ▸ Funnel: SF stainless steel funnel, 100 ml x 6 ▸ Filter diameter: 47 mm ▸ Material contact with filtrate: SS316 |
